Rated Voltage (V) | 24/36V |
Rated Power (W) | 250W |
Rated Efficiency (%) | >=80 |
Torque(max) | 55 |
Open Size (mm) | 111 |
| Cable Location | axle end cable |
Gear Ratio | 1 ：12.25 |
Rated Voltage (V) | 36/48V |
Rated Power (W) | 250W |
Wheel Size | 20/24/26/700C/29 |
Rated Efficiency (%) | >=80 |
Torque(max) | 40 |
Open Size (mm) | 135 |
Cable Location | axle end cable |
Gear Ratio | 1 ：4.4 |
Brake Type | V / Disc Brake |
Rated Voltage (V) | 36/48V |
Rated Power (W) | 500W |
Wheel Size | 20/24/26/700C/29 |
Rated Efficiency (%) | >=80 |
Torque(max) | 65 |
Open Size (mm) | 135 |
Cable Location | axle end cable |
Gear Ratio | 1 ：5 |
Brake Type | V / Disc Brake |
Rated Voltage (V) | 48 |
Rated Power (W) | 750/1000 |
Wheel Size | 24/26/700C/28/29 |
Rated Efficiency (%) | >=85 |
Torque(max) | 90 |
Weight (Kg) | 4.8 |
Open Size (mm) | 135 |
Drive and Freewheel Type | Rear 7s-9s |
Cable Location | axle side |
Gear Ratio | 1:05 |
Brake Type | Disc Brake |
Certificate | Tuv/Rohs |
Rated Voltage (V) | 48 |
Rated Power (W) | 2000 |
Wheel Size | 24/26/700C/28/29 |
Speed (km/h) | max 60kmh |
Rated Efficiency (%) | >=85 |
Weight (Kg) | 7.2 |
Open Size (mm) | 154 |
Cable Location | axle side |
Brake Type | Disc Brake |
Certificates | TUV/Rohs |

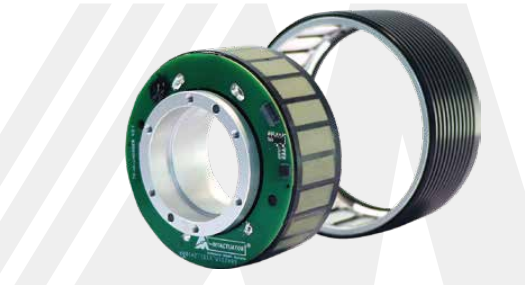

Gear ratio | 100 | Efficiency(%) | 86% |
Input voltage（V） | 48 | Back-EMF constand(vdc/krpm) | 2.79 |
No-load current（A） | 1.45 | Torque constant(N.m/A) | 0.04 |
No load speed | 30 | Phase resistance | 0.7 |
No load current | 1.45 | Phase inductance(mh) | 0.47 |
Rated speed（rpm) | 25 | Pole pair | 10 |
Rated torque(N.m) | 35 | Backlash | less than 20 |
Rated power(W) | 180 | Encoder Type&Interface | Dual encoder/ABS-17 bit |
Rated current | 9 | Repeat position Accuracy(degree) | less than 0.01 |
Peak torque(N.m) | 54 | Communication | CAN/EtherCAT |
Peak current(A) | 13.86 | Insulation grade | F |
Input voltage（V） | 24 | Back-EMF constand(vdc/krpm) | 7.93 |
No-load current（A） | 0.32 | Torque constant(N.m/A) | 0.07 |
Rated speed（rpm) | 2500 | Phase resistance | 0.4 |
Rated torque(N.m) | 0.35 | Phase inductance(mh) | 0.19 |
Rated power(W) | 91.6 | Pole pair | 13 |
Rated current | 4.9 | cogging torque | 12 |
Peak torque(N.m) | 0.87 | Encoder Type&Interface | Hall+INC |
Peak current(A) | 14.7 | weight(kg) | 0.19 |
Efficiency(%) | 86% | Insulation grade | F |
